Model No.: HTR-L500

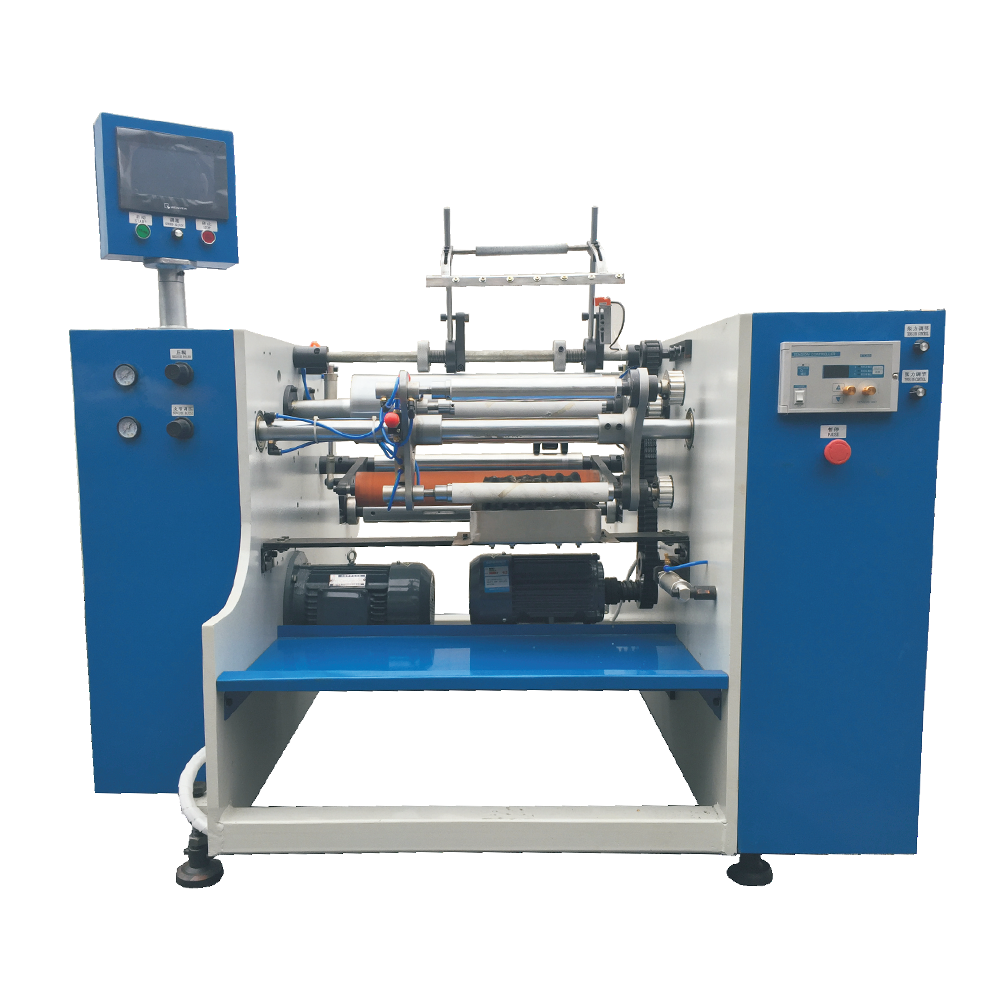

Three-Shafts Aluminum Foil/ Silicon Paper Rewinding Machine
Rewinding Machine Description
Three-shafts aluminum foil/Silicon Paper rewinding machine can be rewinding two kinds production at the same machine. It is mainly used for stretch/Cling Film , which can be divided to small finished rolls from big rolls with the same width. Operating and monitoring the machine is simplified with the combination of automatic functions and the user-friendly HMI interface.
The Features of Auto Rewinding Machine
1) High degree of automation level, with PLC and HMI together with inverter control system.
2) Easier to operate and inspect machine with both automaticand HMI.
3) Loading and changing paper core, cutting and loading finished products, plus slicing and blanking, all be finished by manual.
Automatic Rewinding Machinery Display
The Dimensions of Automatic Rewinding Machine
| Model | HTR-L500 |
| Width Of Mother Roll | Max 500mm |
| Width Of Finish Roll | Max 500mm |
| Speed | 175 m/min |
| Mother Roll Diameter | Max 700mm |
| Finish Roll Diameter | Max 100mm |
| Core Of Mother Roll | 3" |
| Core Of Finish Roll | 30 - 50 mm |
| Dimension | 1490 x 1650 x 1400 mm |
| Net weight | 600 Kg |
Product Categories : Rewinding Machine
