Model No.: HTR-S500/HTR-S750/HTR-S1000

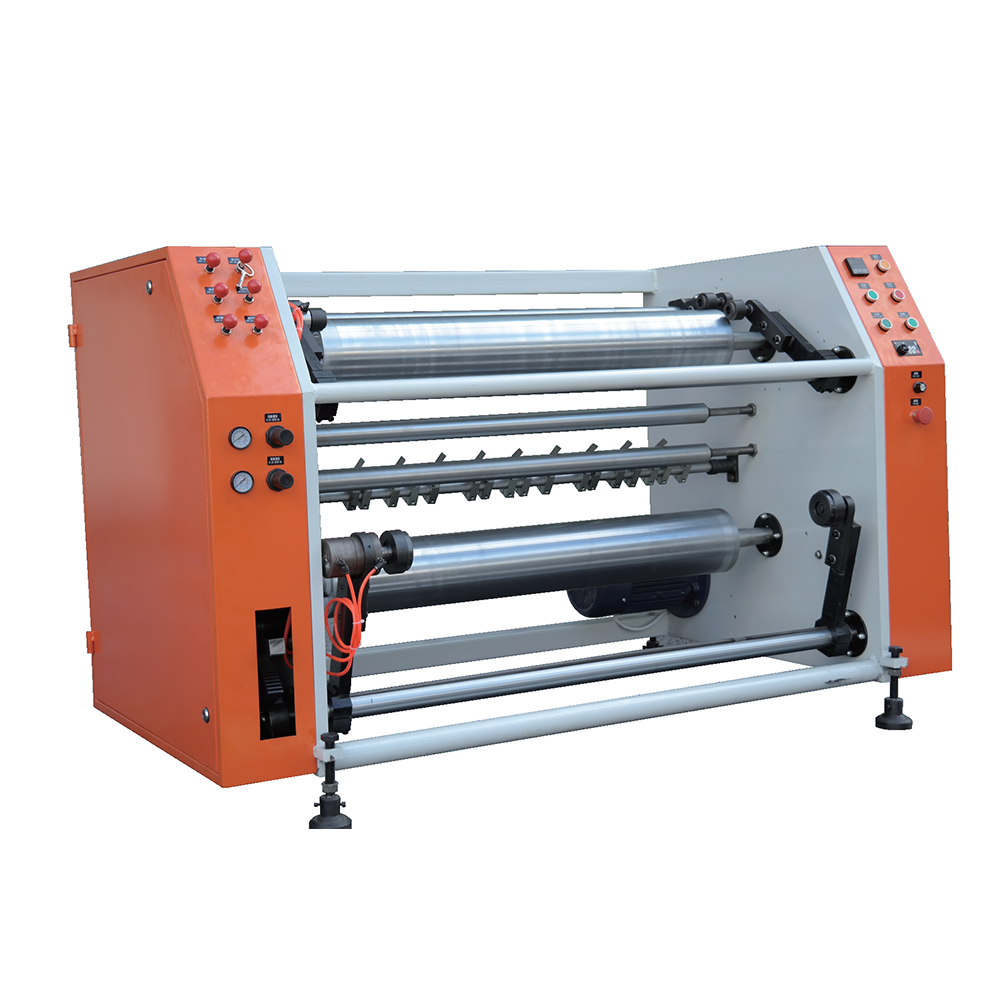

The HT semi-automatic stretch film rewinding and slitting machine can rewind large mother rolls into smaller rolls, either the same or different widths. Through the slitting/rewinding channel, incorrect layers can be corrected, and printing and compositional defects can be eliminated, thereby enhancing the flatness of the coil.
| Model | HTR-S500 / HTR-S750 / HTR-S1000 |
|---|---|
| Width of Mother Roll | Max 500mm / 750mm / 1000mm |
| Width of Finish Roll | Min 50mm - Max 500mm / 750mm / 1000mm |
| Speed | 600 m/min |
| Mother Roll Diameter | 400mm |
| Finish Roll Diameter | Rewinding 300mm + Slitting 200mm |
| Core of Mother Roll | 3" |
| Core of Finish Roll | 3", 2", 1.5" (Thickness of paper core ≥4mm) |
| Size of Airshaft | 3" |
| Diameter of Finished Product | Max 150mm |
| Dimension | Depend on Different Model |
| Net Weight | Depend on Different Model |
Product Categories : Rewinding Machine
